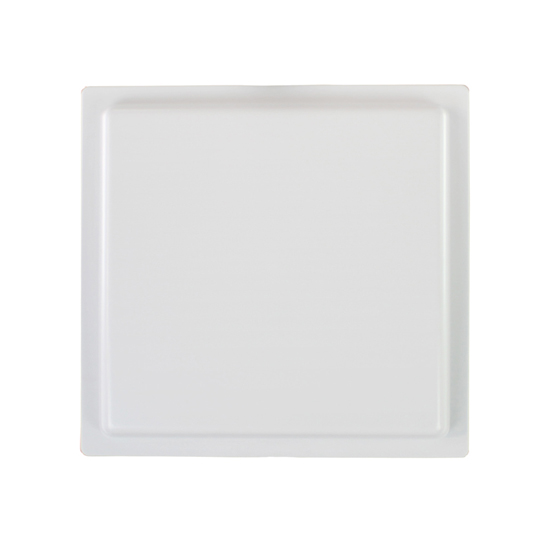

UHF long range integrative reader

  • UHF Long range integrative reader
  • UHF Long range integrative reader
  • UHF Long range integrative reader
UHF Long range integrative readerUHF Long range integrative readerUHF Long range integrative reader

UHF Long range integrative reader

  • Type:TS-301
  • Reading range:12m
  • Antenna:Built-in 12dbi antenna
  • Product description: uhf rfid reader
  • INQUIRY

Specification

Protocol

ISO 18000-6C(EPC gen2)

ISO 18000-6B

Frequency Range

902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs

Output Power

0-30dbm

Reading Speed

Software Programmable,Average Reading per 64Bits<6ms

Data Ports

Standard :Wiegand26/34, RS485RS232Software  Programmable

Option:RJ45WIFI(customize)

Data Input Port

Trigger input one team,anti-collision and multi-reading

Reading Range

12M

Reading Clue

Buzzer

Antenna

Built-in linear polarization AntennaGain:12dbi

Power Supply

DC9V (Power Adapter),DC+12

Dimension

440mmx440mmx50mm

Weight

5 Kg

Operation Temp

20~80

Software

Free Offer SDK,Source code,demo software,confige software,communication protocol development kits
