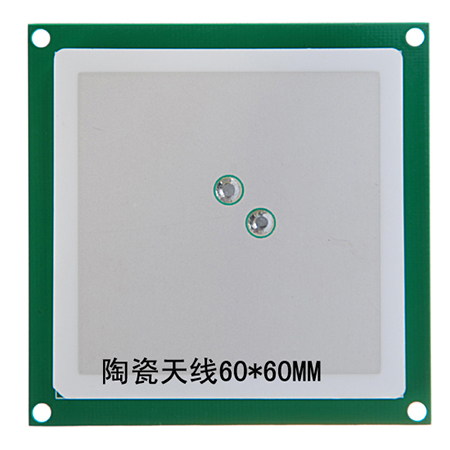

UHF RFID Reader Microstrip Ceramics Antenna
Model Name: TS-242-6
INTRODUCTION
This ceramic antenna is designed to embedded handheld reader application, PCB board structure, small in size, with cable, easily installed.
FEATURES
♦ UHF RFID Reader Circular Polarization Antenna
♦ Microstrip ceramics Antenna with RHCP
♦ Small antenna element
♦ Low Weight, Compact Size
♦ Low interaction with platform
♦ Negligible detuning close to users
♦ Easy application and Save development time
SPECIFICATIONS
|
Frequecy Range |
902MHz-928MHz or 865MHz-868MHz or customize |
|
Antenna Gain |
3dbi |
|
Polarization |
Circular polarization |
|
VSWR |
1.5:1 |
|
F/B Ratio |
≥20 |
|
Impedance |
50Ω |
|
Beam width |
>10.0MHz |
|
Lightning protection |
DC Ground |
|
Connector Type |
SMA-Female or others customize connector |
|
Size |

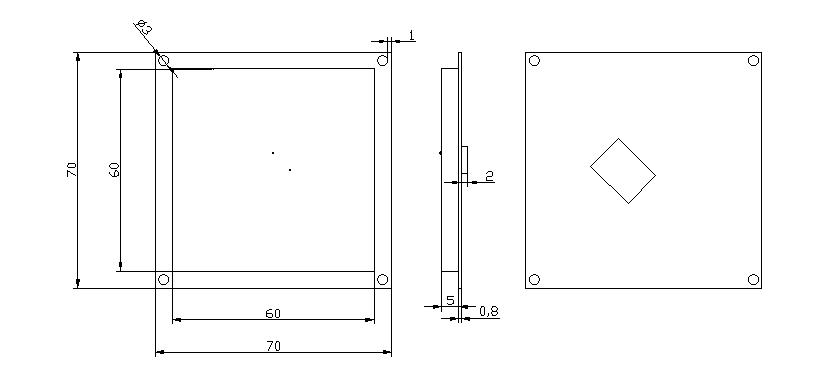

Ceramic antenna size:60x60mm PCB board size:70x70mm |
|
RF Cable |
φ1.13mm or φ0.81mm,L=105mm |
|
Material |
Antenna:Ceramic and PCB:FR4 |
|
Weight |
0.1g |
|
Operating Temp |
-40-80℃ |
