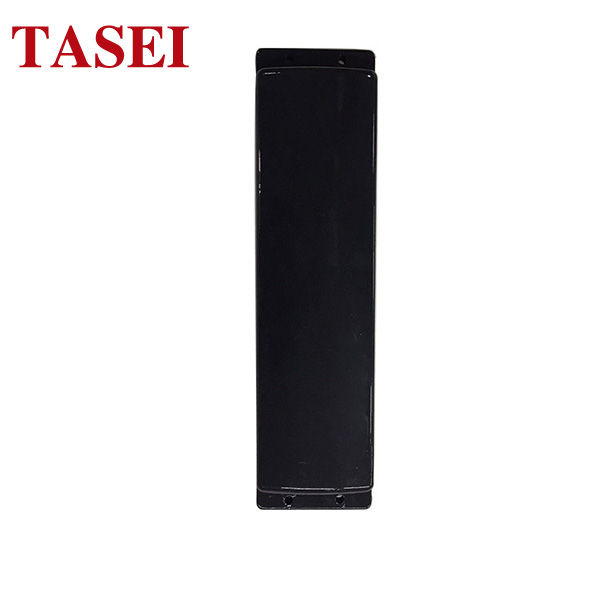

Waterproof UHF 11dBi Linear polarization Orbital RFID antenna
TS-2311
Introduction
♦ 860MHz -960MHz
♦ Gain 11dbi
♦ Linear Polarization
♦ 605x153x52mm
Application
♦ Railway Administration
♦ Vehicle Management
♦ Intelligent Traffic Monitoring System
♦ RFID logistic Tracking
Specification
|
Frequecy |
860MHz-960MHz |
|
Antenna Gain |
11dbi |
|
Polarization |
Linear Polarization |
|
Beam width |
Horizontal angle:90° Vertical angle:30° |
|
VSWR |
≤1.3 |
|
F/B Ratio |
≥12 |
|
Impedance |
50Ω |
|
Maximum power |
50W |
|
Lightning protection |
DC Ground |
|
Connector Type |
N-Female |
|
Antenna Size |
605x135x52mm |
|
Net Weight |
2.46kg |
|
Package Size |
525x170x70mm |
|
Gross Weight |
2.72KG |
|
Material |
Organic Glass |
|
Color |
Black |
|
Rated wind velocity |
60m/s |
|
Operating Temp |
-40-70℃ |
